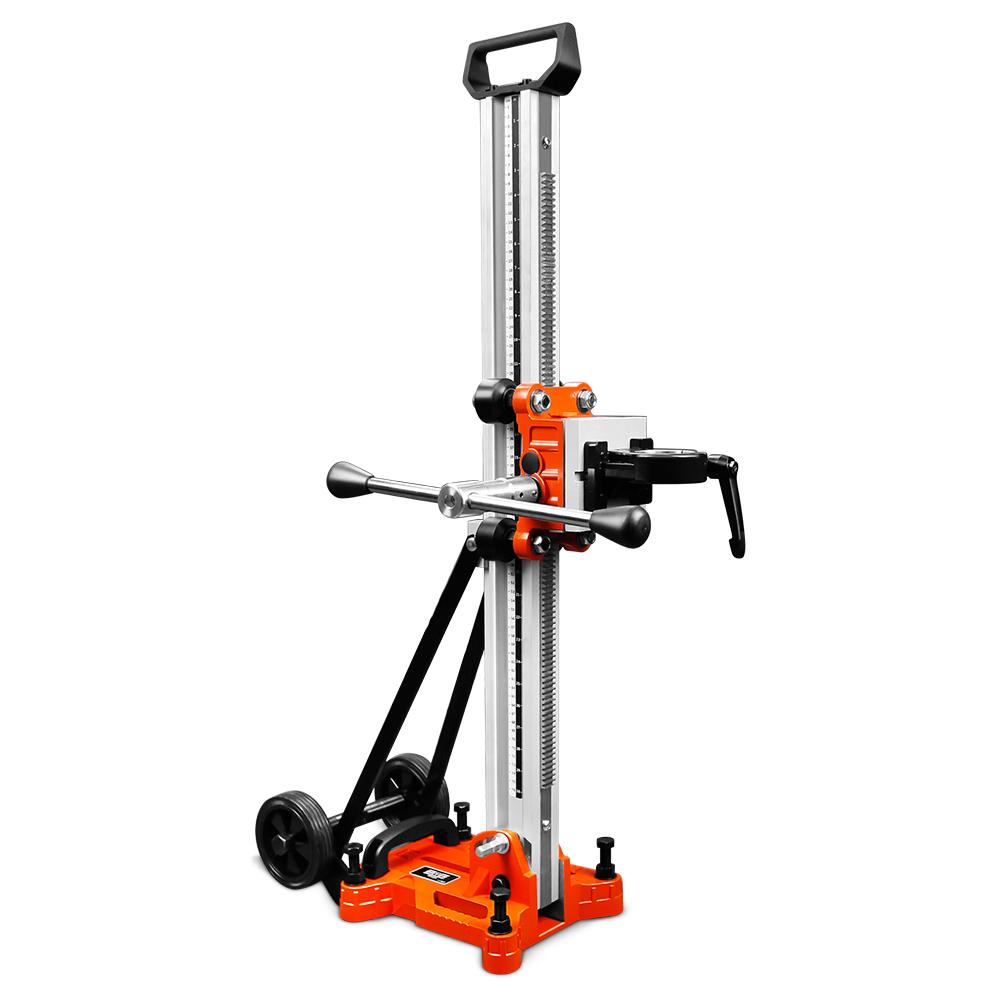

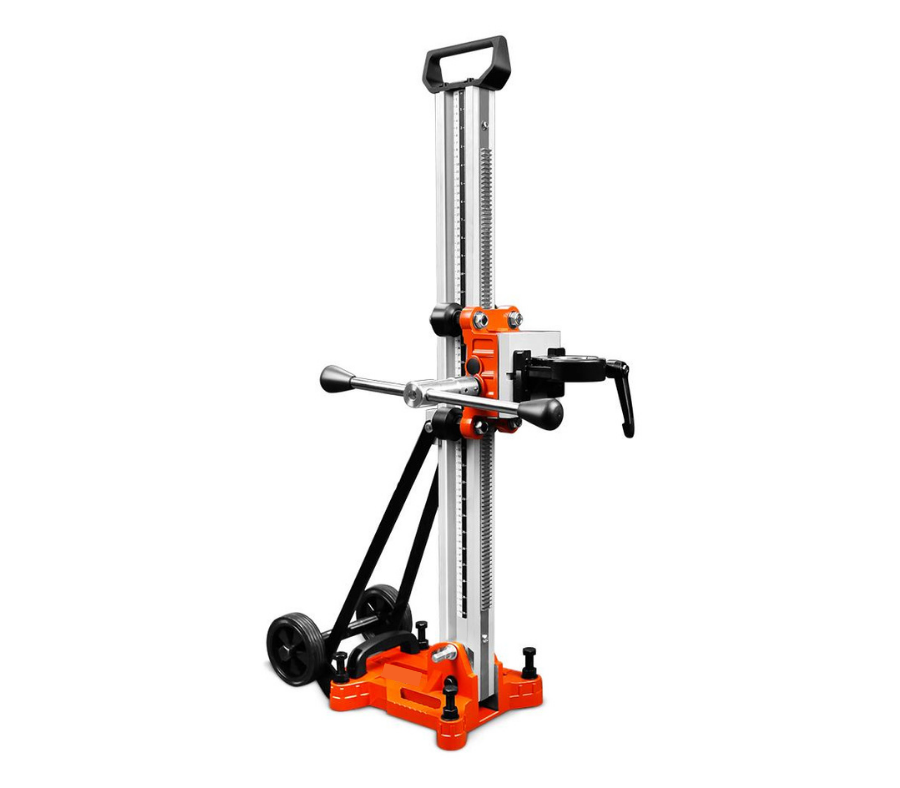

200mm Diamond Core Drill Rig Stand

This Bayer Diamond Core Drill Rig Stand is designed to mount Bayer Core Drill Motor by using a suitable mounting spacer. A standard 4 bolt mounting spacer is included with this stand. The drill stand guides the motor and Bayer core bit so that it is possible to drill perfectly straight cuts in a safe and controlled manner. The stand is also able to slant so that holes may be cored at an angle as required. This stand must be securely fastened to the workpiece using a concrete anchor.

Features:

• The light adjustable aluminum alloy bracket can drill inclined holes from 0-45°
• Light, easy to transport and install drill frame tight and equipped with wheels
• Frame with general fast connecting block, quick installation and is suitable for the majority of products on the market
• Base, frame, the bracket, and all adjusting screw can be used with the pushing handle attached to adjust
• Guidance handle allows for smooth operation and control
• Heavy-duty no flat tyre. Allows easy transportation without physical lifting

Pricing: On Request

Specifications:

• Max. capacity: 200mm (with extension spacers)
• Effective stroke: 690mm
• Dimensions (L x W x H): 450mm x 300mm x 950mm
• Weight: 14.5kg
