Single Head Grinder

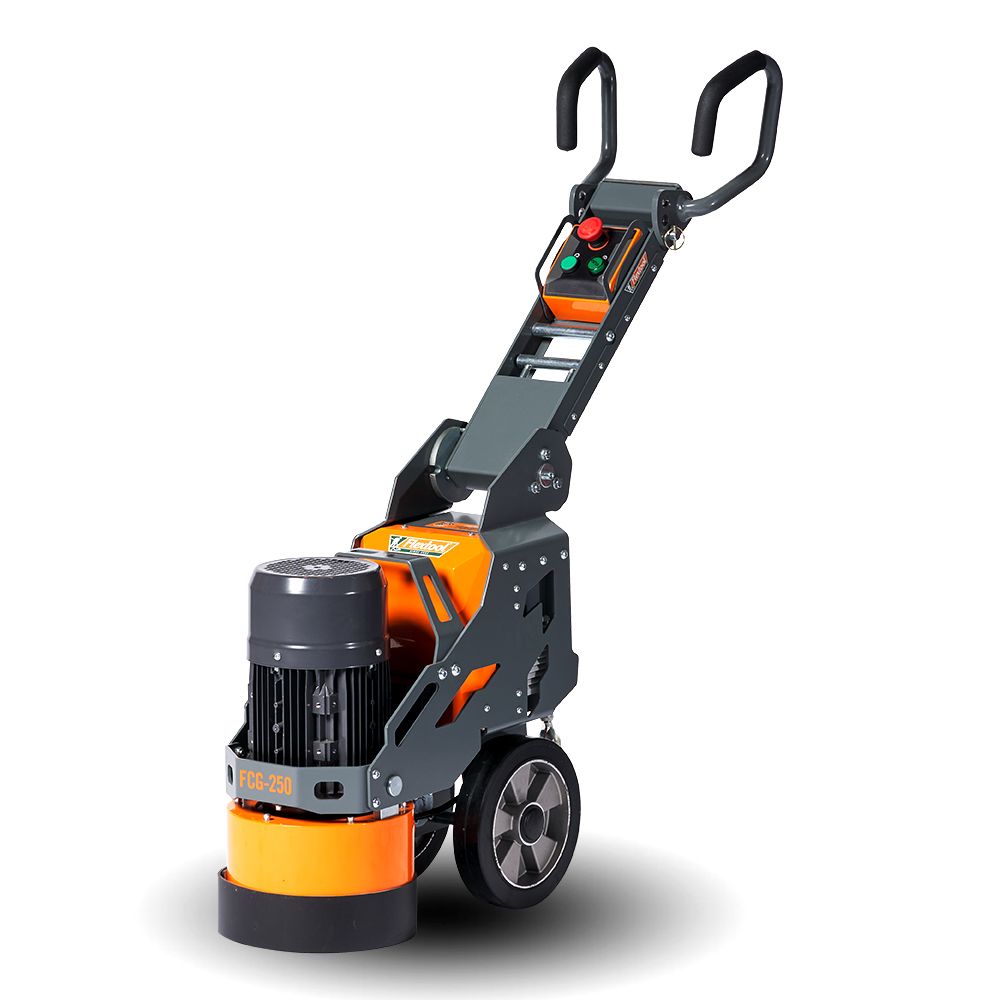

The Flextool Single Head Concrete Grinder FCG-250 is compact in design and delivers exceptional grinding capability. The combination of the direct drive system and the motor positioned directly over the grinding head, allow for efficient and aggressive grinding. Designed for professionals, the FCG-250 has a detachable grinding head for easier transportation, a folding handle with adjustable handlebar, easy access control panel and a central lifting hook.

The innovative floating grinding head with self-levelling pivot follows the floor profile, which promotes even wear of the grinding shoes. A floating dust shroud gives a tight seal, capturing harmful dust from escaping the grinding head.

This machine is ideal for small and medium domestic or commercial projects, where coating removal, levelling high spots, or general concrete grinding and surface preparation are needed.

Changing grinding shoes is fast and hassle-free with the Easy Lock tooling system. Compatible with the Redi Lock system, this machine comes standard with a grinding shoe adaptor plate.

The Flextool Single Head Concrete Grinder FCG-250 should be used with a quality H-class dust collector, such as the Flextool Dust Collector FDC-1A or FDC-1M.

Price on Request

Features:

• Easy operator access with control panel positioned within reach for optimised control and safety
• Floating dust shroud gives a tight seal, capturing harmful dust from escaping the grinding head
• Fitted with a 50mm outlet for connection to a vacuum system
• Single phase 1.8kW electric motor for sue with standard 10amp power outlets
• Floating head with self-levelling pivot that follows the floor profile, promoting even wear of the grinding shoes and plates
• Direct drive system delivers optimum grinding efficiency with full motor weight directly over the grinding head
• Detachable grinding head for quick and easy separation of the grinding head and motor from the main chassis for easier and lighter handling and transportation
• Reversible 3-way height-adjustable handlebar for superior ergonomics and operator comfort
• Folding handle with 2 locking positions for transport and storage, changing of consumables and operation
• Central lifting hook for easy and safe onsite handling
• Compatible with universal Redi Lock tooling systems for fast and hassle-free changeover of grinding shoes. Can also be operated using 250mm/10" grinding plates
• Can be used with a heavy-duty extension lead with a minimum 3x1.5mm2 cable, which does not exceed 20m in length

Specifications:

• Voltage: 240V (50/60Hz)
• Max Current: 9.8A
• Power Output (kW): 1.8
• Power Output (hp): 2.4
• Grinding Speed: 1400rpm
• IP Rating: 55
• Dust Outlet: 50mm (2")
• Lifting Hook: Yes
• Grinding Shoes: Easy Lock (Redi-Lock Compatible)
• Grinding Width: 250mm (10")
• Operating Weight: 76kg (167.5lb)
